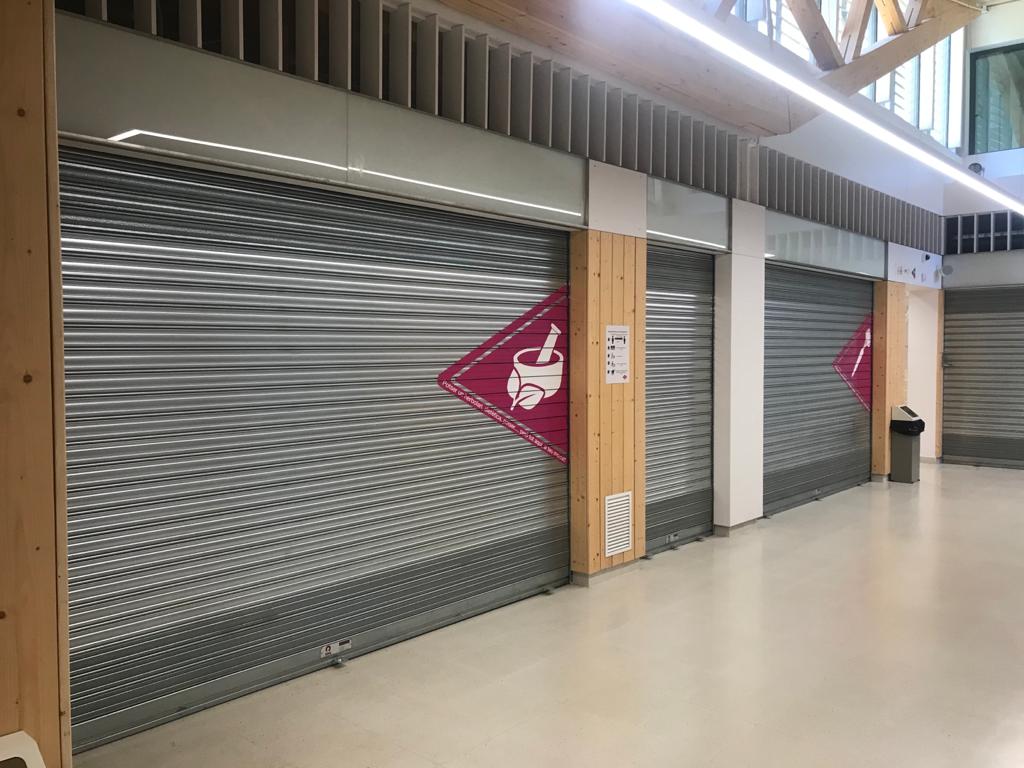

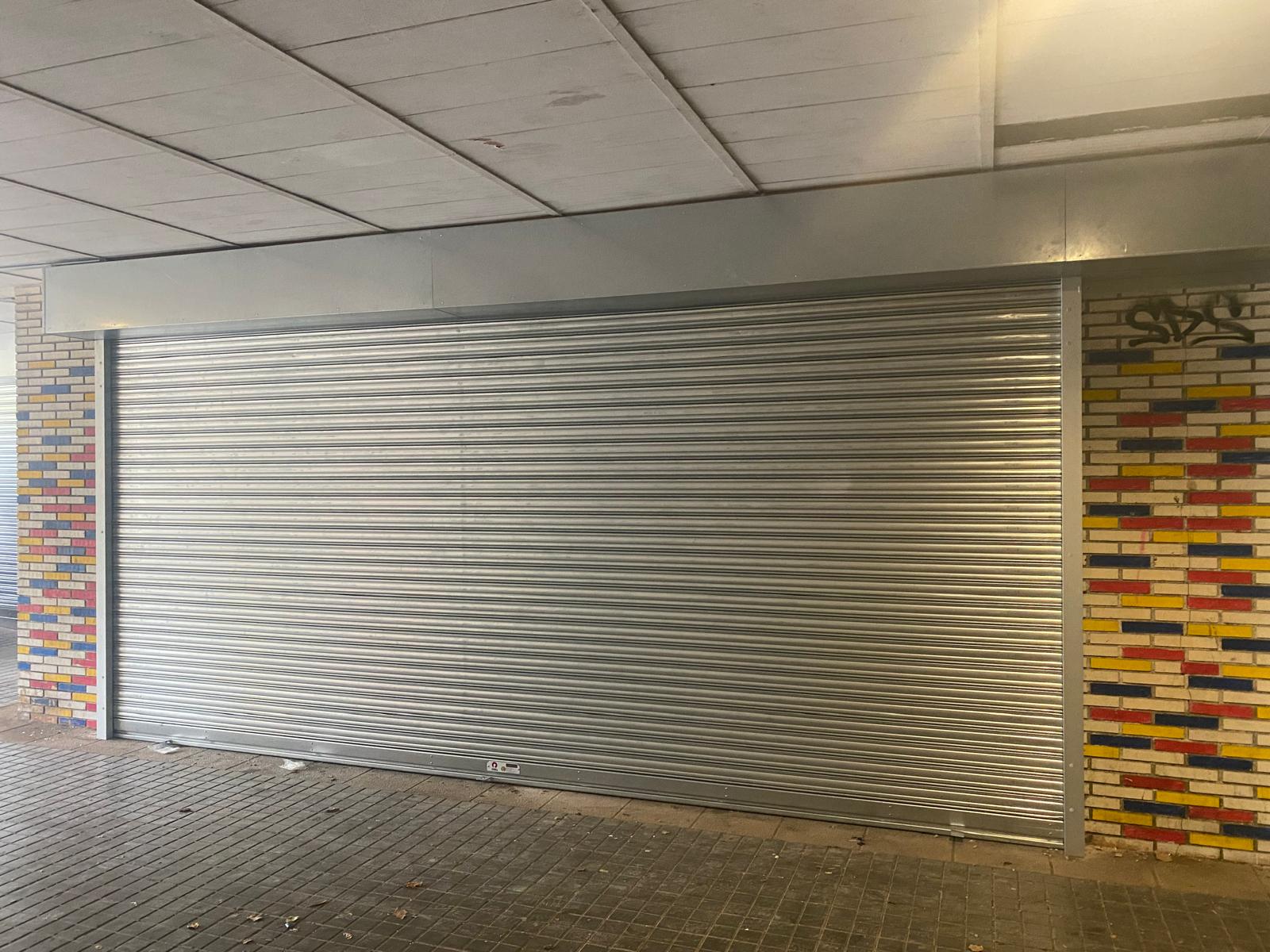

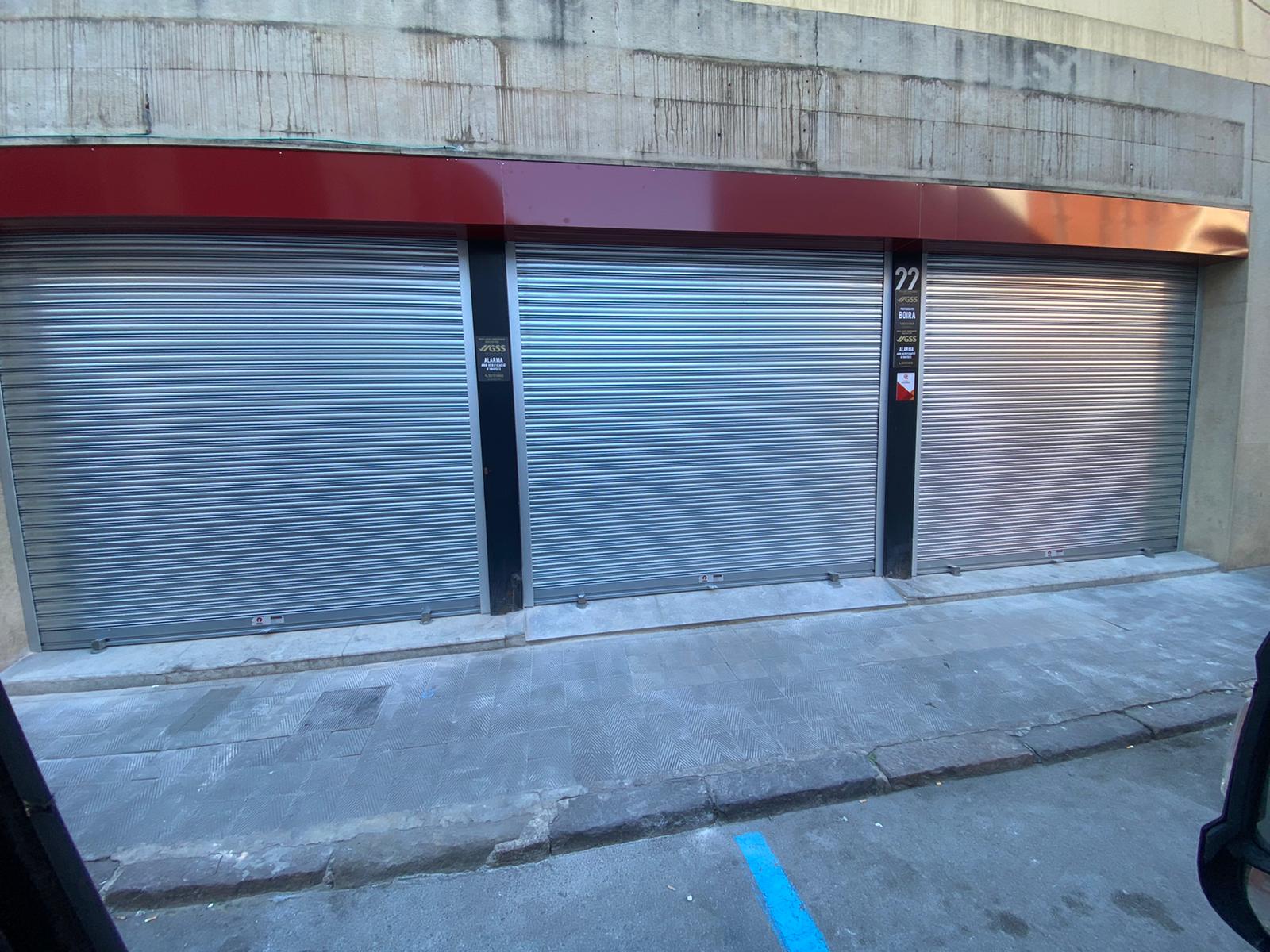

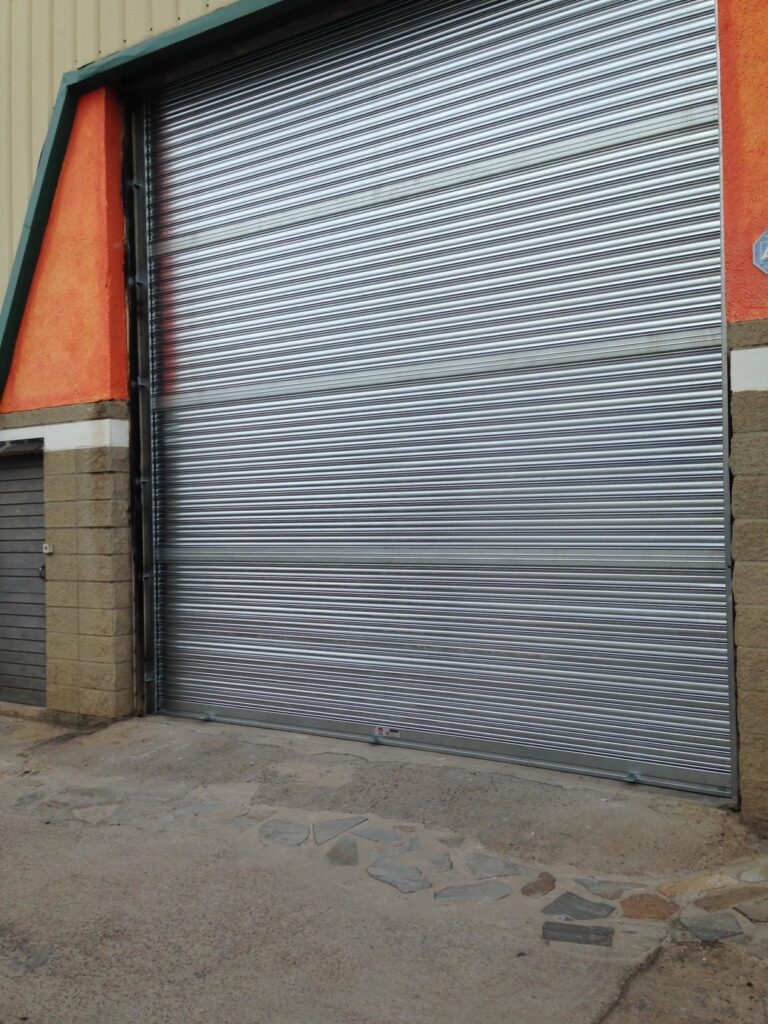

ROLLER SHUTTER DOOR

| Product description

CURTAIN | RIE-10 slat model in galvanized steel.

BOTTOM BAR | Galvanized steel bottom bar with sealing rubber.

MOTOR | ELEKTROMATEN side motor.

NAMEPLATE | Riera metal nameplate.

HOOD | Without protective hood.

ACCESSORIES | Bottom bar stops and lock with key set.

END CAP

| Product description

107 × 18.5 mm · variable thickness

Our curtain is finished with a PA6 (nylon) end cap. Two versions are available: left-hand and right-hand.

BOTTOM BAR

| Product description

Steel slat 142 × 28 mm · 2 mm thickness

The lower part of the bottom bar can incorporate a sealing rubber to improve airtightness. This element is optional and must be requested separately.

GALVANIZED STEEL

| · Manufacturing

The slats are manufactured from galvanized steel coil through a continuous cold roll forming process. The sheet passes through progressive rollers that shape its characteristic profile and articulated interlocking system.

| · Material

It is a structural steel product coated with zinc through a hot-dip galvanizing process, providing high corrosion resistance and enhanced durability in outdoor environments.

COATED FINISH

| · Finishes

The powder coating process is certified with the QUALICOAT quality label, ensuring a uniform coating and resistance to adverse environmental conditions.
