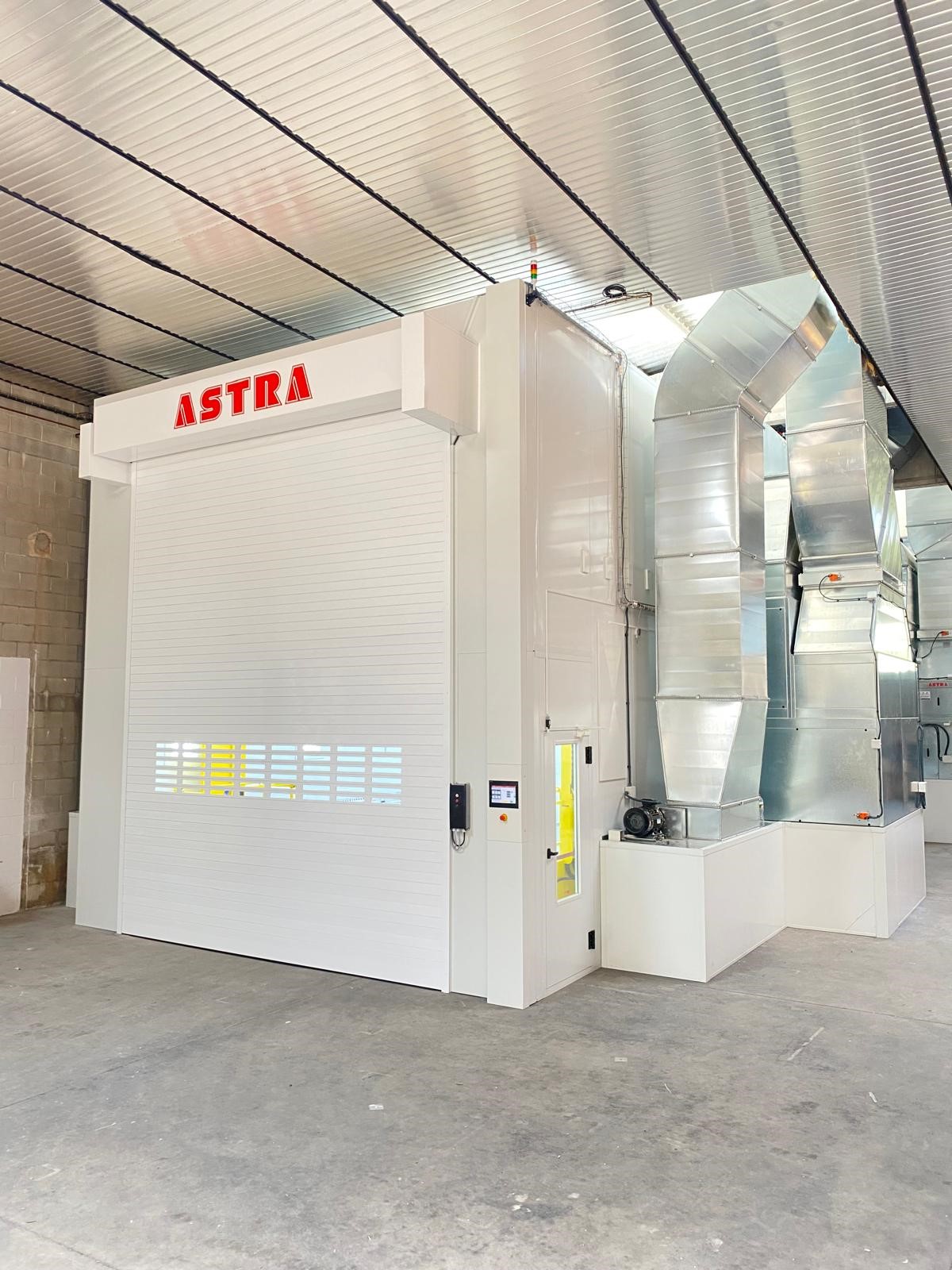

ROLLER SHUTTER DOOR

| Product description

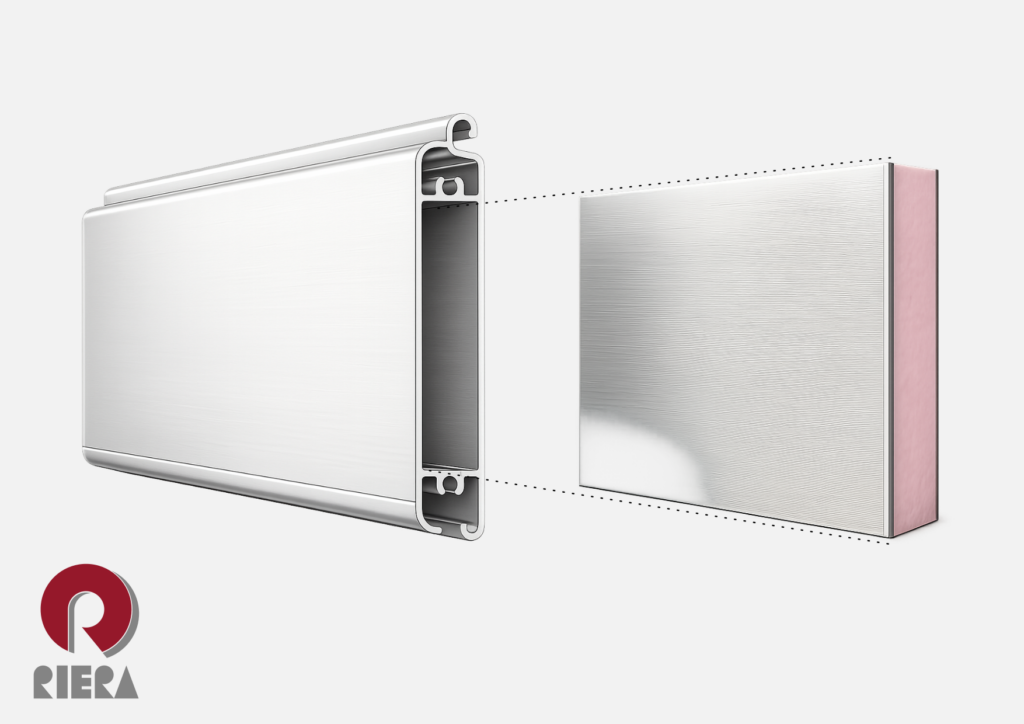

FABRIC | Slat model AISLA-PIR lacquered white color combined with PANORAMIK L slats.

BASE | Aluminium bottom rail with sealing rubber.

MOTOR | ELEKTROMATEN side motor.

PLATE | Unidentified.

CAIXA | Protecció enrotllament, suports i motor.

ACCESSORIES | Electronic control panel, dead man rise and fall and chain release.

END PIECE

| Product description

96×15.8 end piece, thickness 1 mm

Our curtain is finished with a stainless end piece manufactured in 304 & 316 grade stainless steel alloy.

BOTTOM BAR

| Product description |

138×3×15.5 aluminium profile, thickness 1.7

The lower part of the bottom bar includes a sealing rubber to improve tightness, as well as a sliding insert that facilitates movement inside the guides.

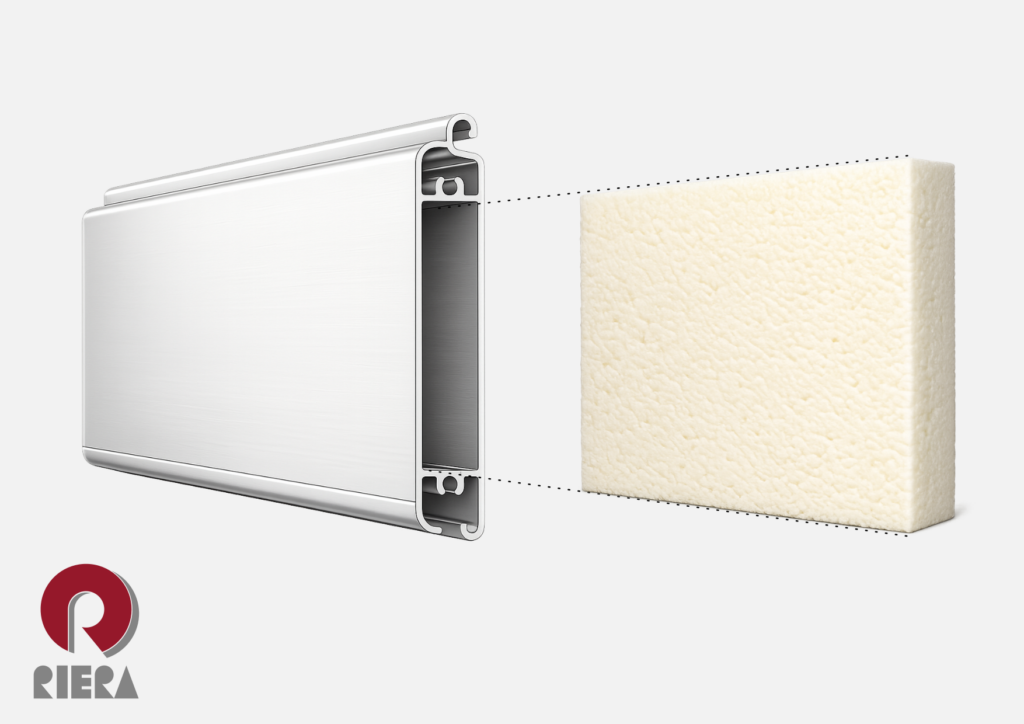

ALUMINIUM

| · Manufacturing and materials

The single-wall slat is manufactured through a high-quality aluminium extrusion process. Its structure complies with international standards UNE-EN 755-9 and UNE-EN 12020-2, as well as UNE-EN 515 and UNE-EN 516, ensuring durability and safety in its application.

| · Alloy

The component is manufactured using EN AW-6060 or EN AW-6063 aluminium alloys, known for their strength and versatility in architectural and construction applications.

COATED FINISH

| · Finishes

For a wood-effect finish, the coating process is carried out under the QUALIDECO quality label, providing a natural and elegant appearance that integrates perfectly into different architectural environments.

The anodized finish is certified with the QUALANOD quality label, ensuring superior corrosion resistance and a uniform aesthetic finish.

The coating process is also certified with the QUALICOAT quality label, guaranteeing homogeneous coverage and high resistance to adverse environmental conditions.
