ROLLER SHUTTER DOOR
| Product description

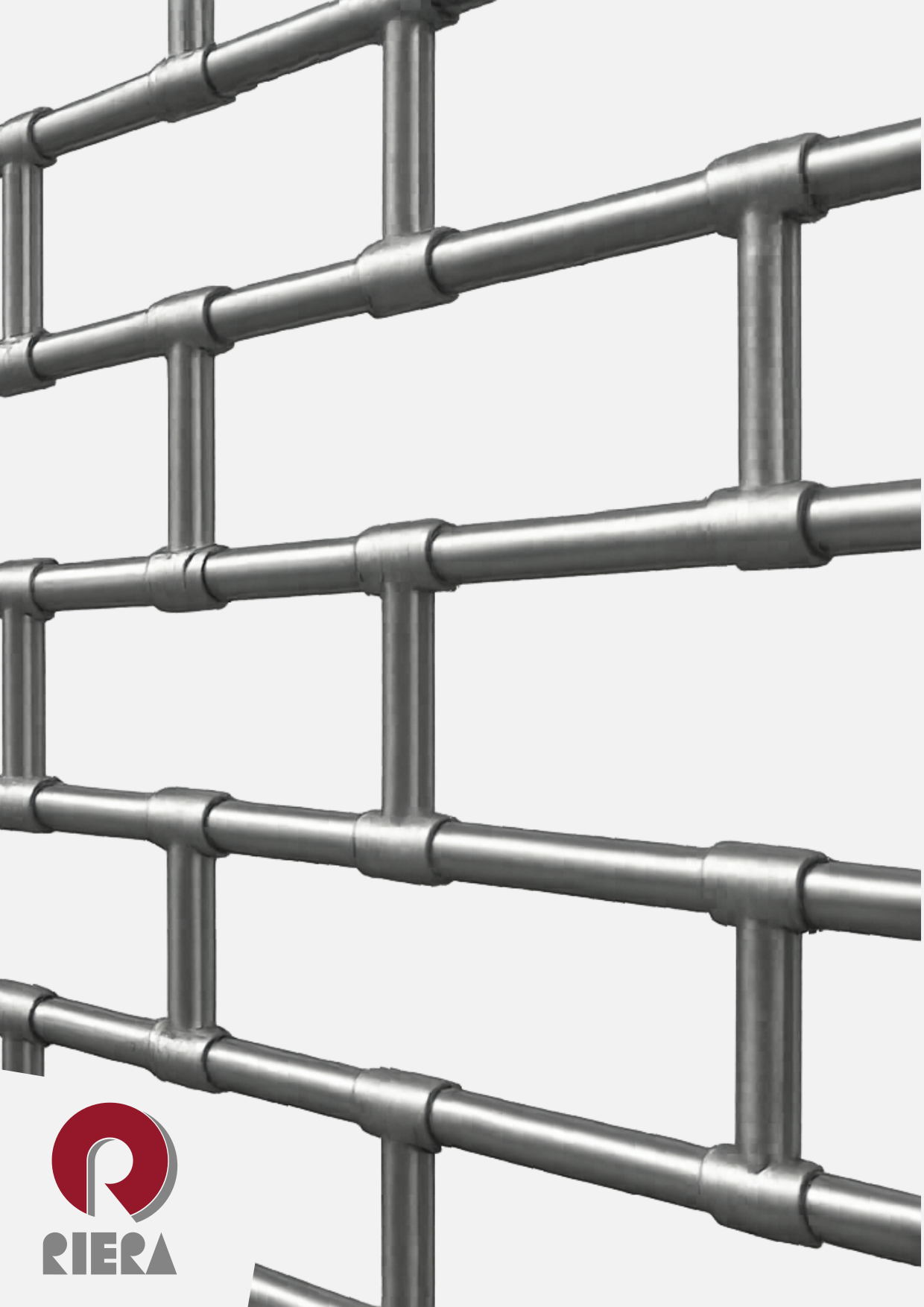

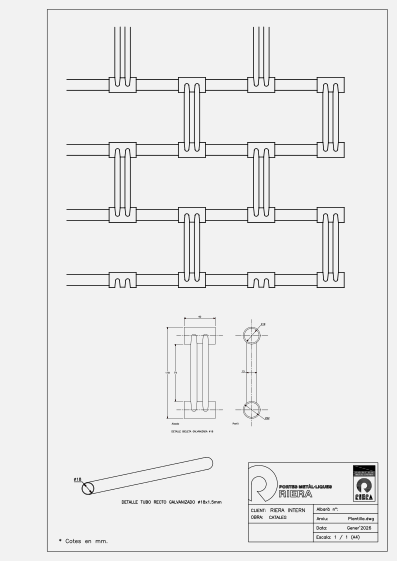

Assembly composed of Ø18 rods with 1.5 mm thickness, connected by link rods with a height of 96 mm, each spaced at 300 mm. This solution provides a lightweight yet resistant appearance.
The lower part of the door is finished with a galvanized steel slat, available in different variants: RIE-10, RIE-10 DN and ONDULADA.

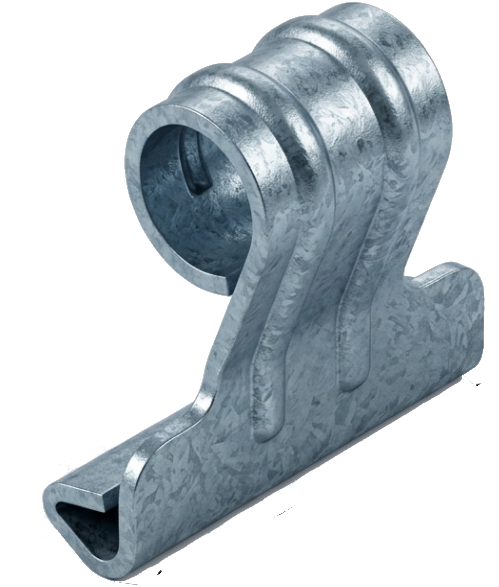

Shaft fixing bracket.
Galvanised steel Ø18 tube.

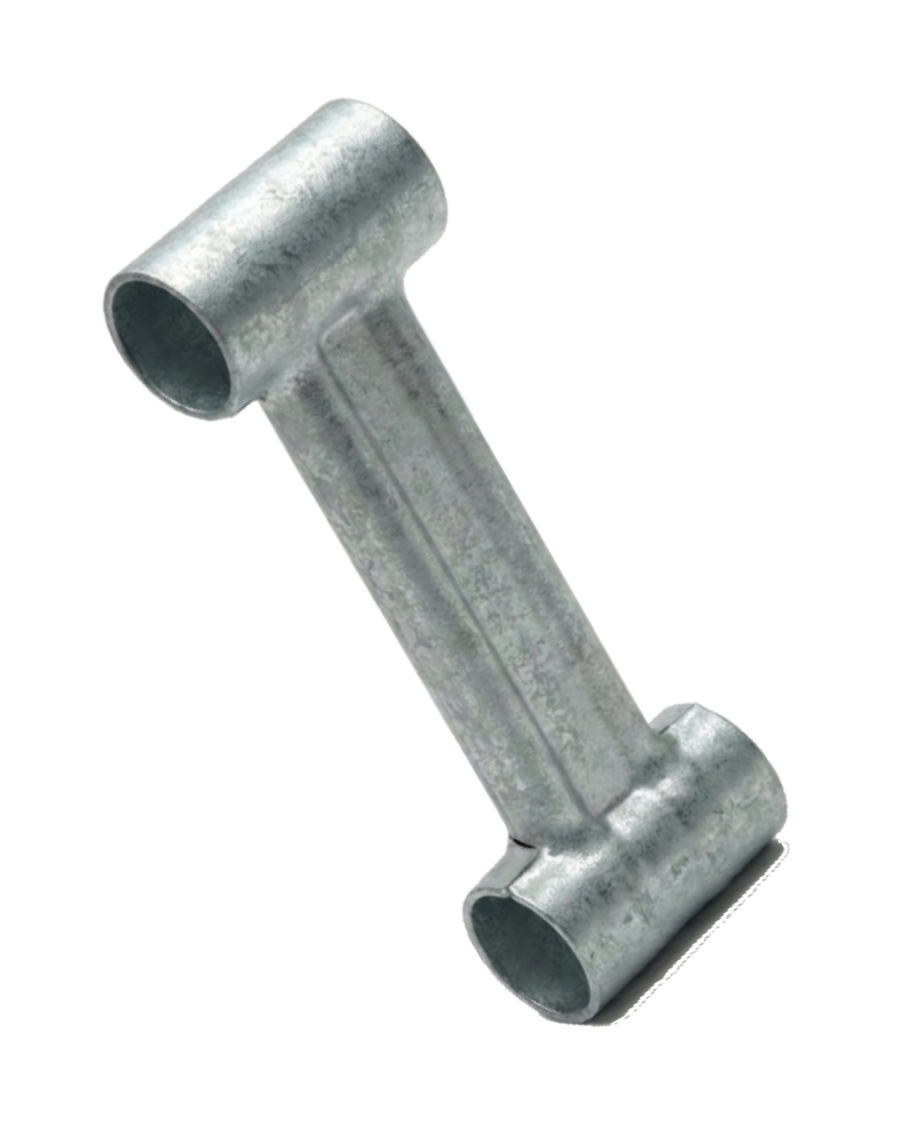

Rod connection link.
Flat bar.
Inner tube stop.
Screws for stop and flat bar assembly
– DOOR BASE SLATS –
rie-10 SLAT
Galvanized steel slat 105 mm width.
rie-10 dn SLAT
Galvanized steel slat 130 mm width.
ONDULADA SLAT
Galvanized steel slat 88 mm width.
BOTTOM BAR
Element installed at the bottom of the shutter including a sealing rubber.
GALVANIZED STEEL
| · Manufacturing
The tube format is a continuous roll forming process in which a steel strip passes through a series of rollers that progressively bend it until closing the section and forming a longitudinally welded tube. It is a fast, precise and cost-efficient process for producing small and medium diameter tubes.
| · Material
It is a structural steel product coated with zinc through a hot-dip galvanizing process, providing high corrosion resistance and enhanced durability in outdoor environments.
COATED FINISH
| · Finishes
The powder coating process is certified with the QUALICOAT quality label, ensuring a uniform coating and resistance to adverse environmental conditions. For wood-effect finishes, QUALIDECO certification guarantees a natural and elegant appearance integrated into any architectural environment.
